Appendix: How to Create Prepared VMs for Labs *

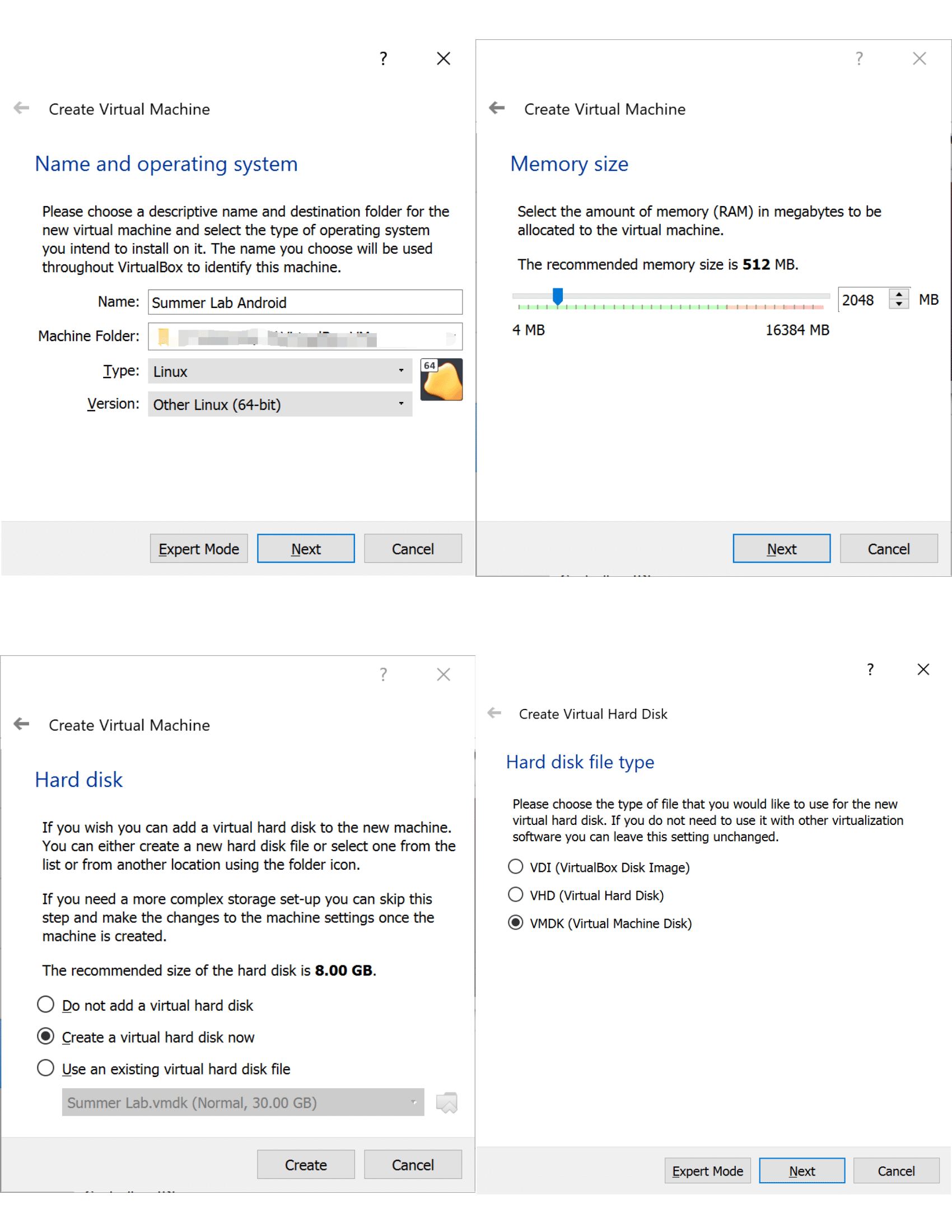

Create an Android VM

Download android-x86_64-7.1-r5.iso iamge from the official website.

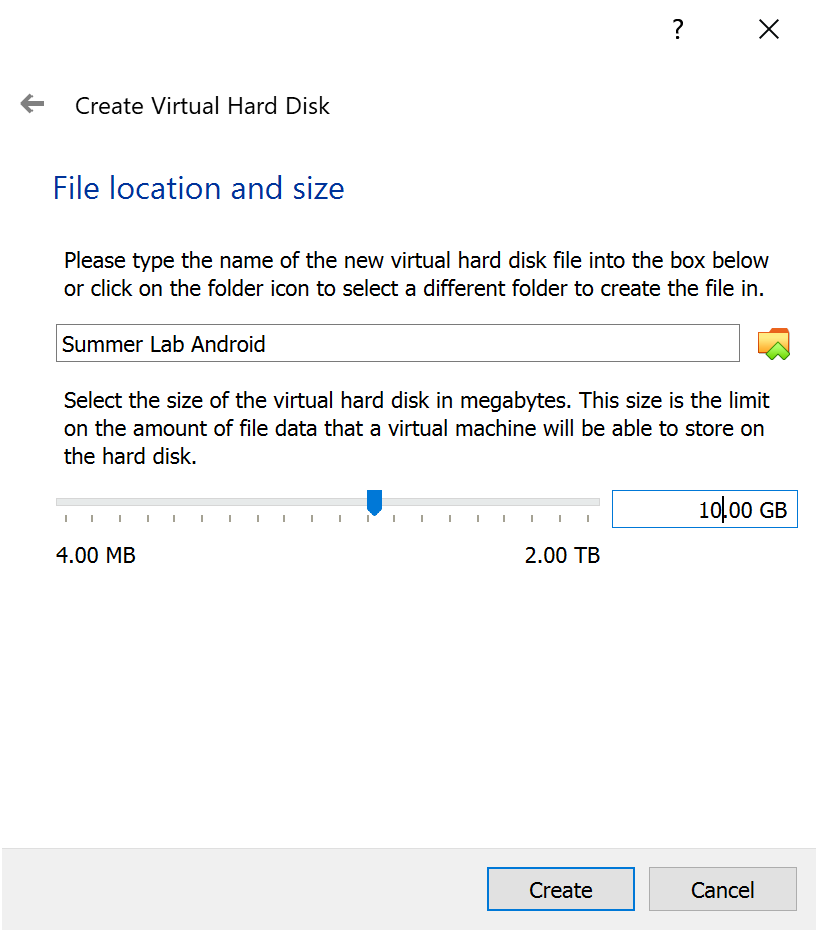

Choose dynamically allocated storage and allocate 10GB as its hard disk space.

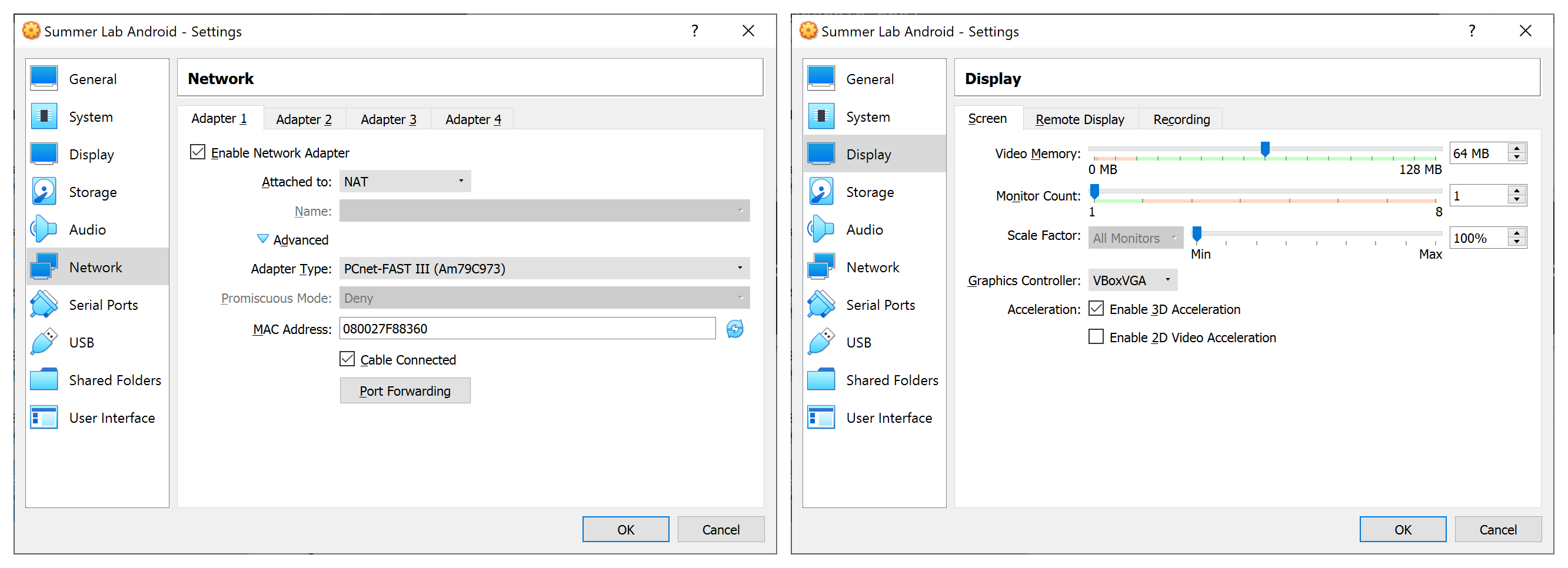

Set its display and network:

  • Display: Select VBoxVGA as graphics cotroller, check “enable 3D acceleration”

  • Network: Attach to NAT, select adapter tye as PCNet Fast III, and check “Cable connected”.

Start the VM, Load android-x86_64-7.1-r5.iso as start-up disk.

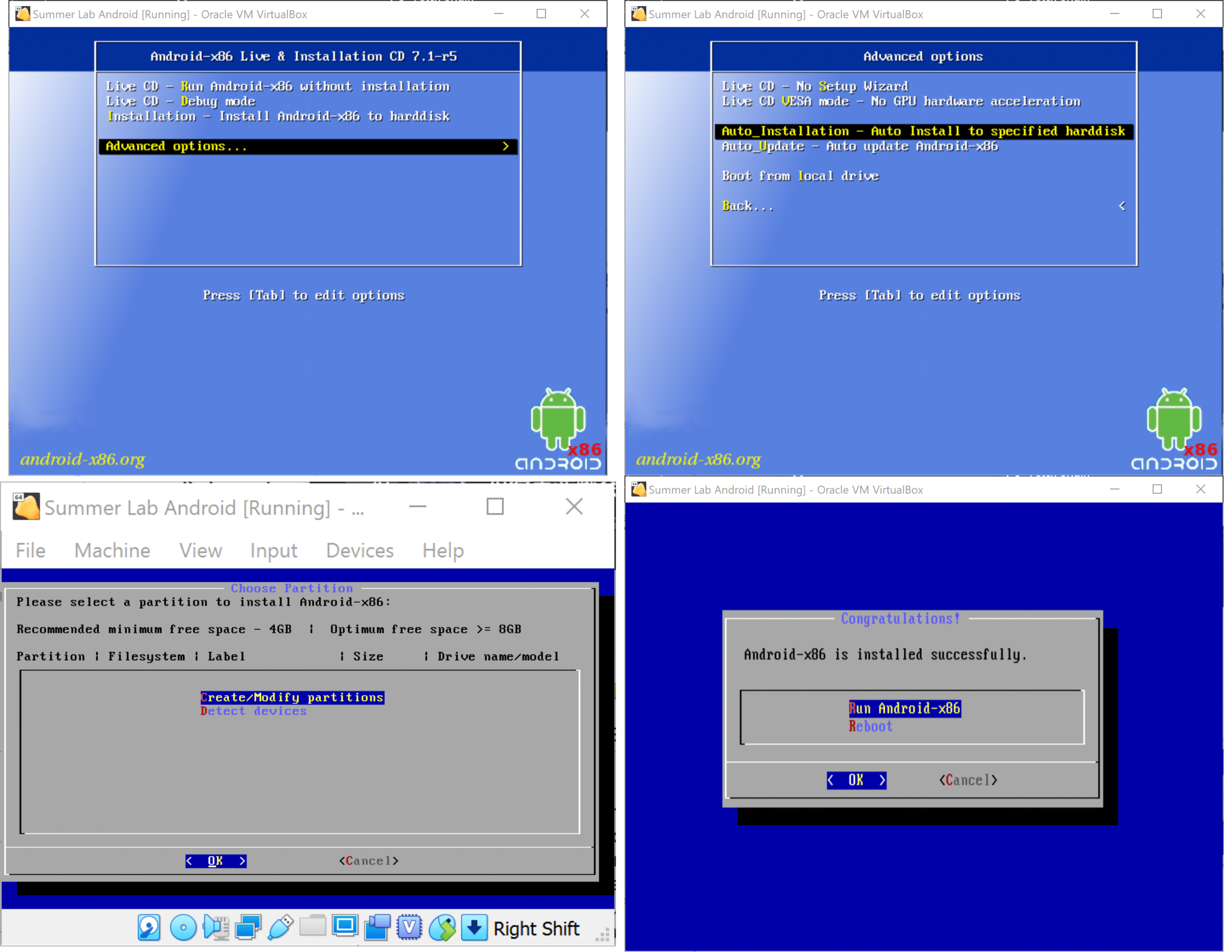

Select “Advanced options” -> “Auto Installation” -> “Create/Modify partitions” -> “Run Android-x86”

After installing Android OS, it requires you set up some initial settings, you can simply skip it and use default settings.

After entering the home screen, check “Unknown source” in “Settings” -> “Secure” to allow you install .apk from Internet. Turn off the Play Store Protection from “Play Store” -> “Settings”:

Open Chrome browser app on it, download apks:

Choose “open” once finishing the download, it will ask you whether to install the downloaded apks automatically, confirm and install them anyway.

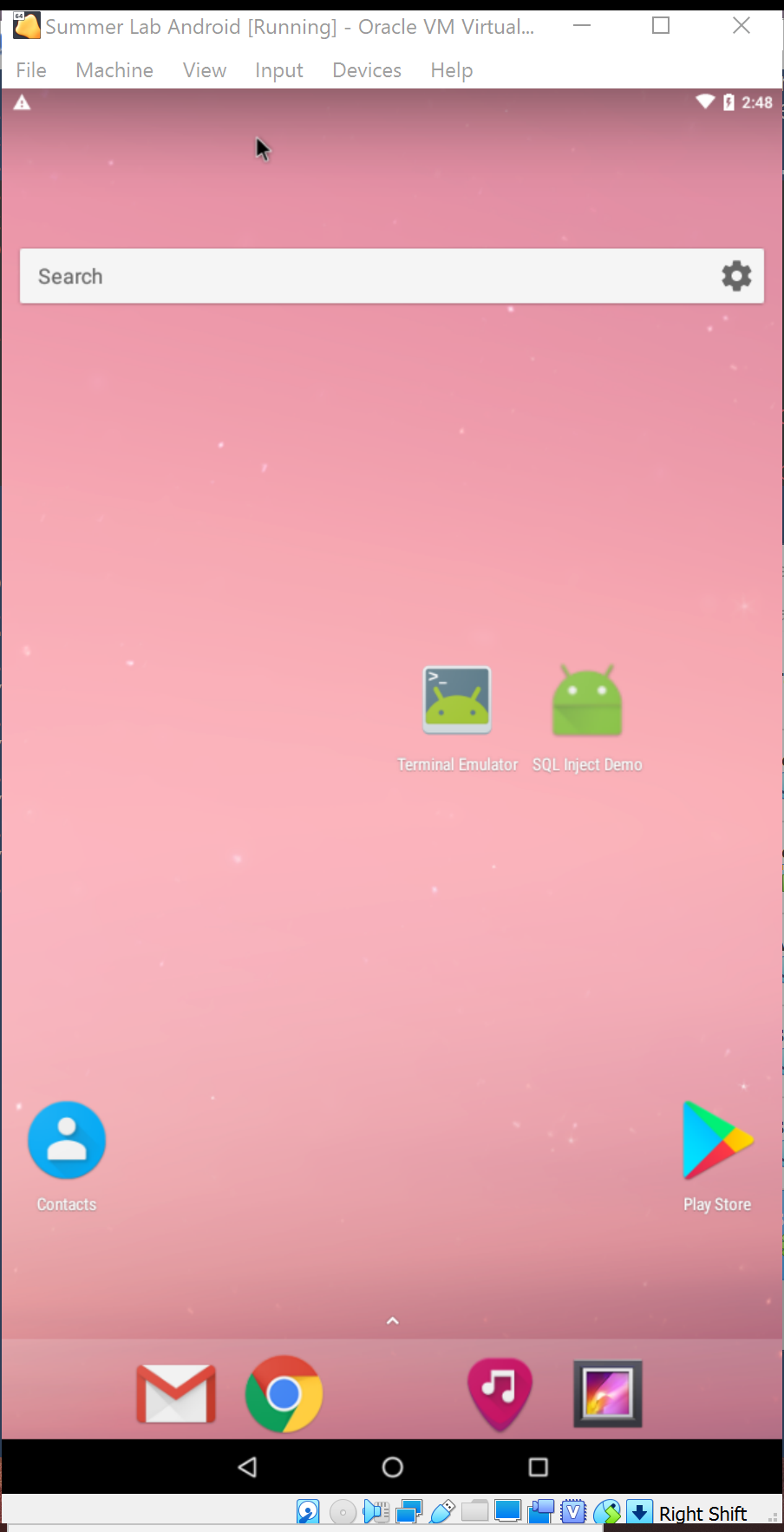

Drog the two apps to the home screen, finally we get such an Android VM:

Optional: Change the Screen Size *

To make it looks more like a phone in portrait oriention mode, we may modify its screen resolution as 600*1080*32 and fit VirtualBox viewer. (see this video as well)

Find the location where VirtulBox installed on your Windows Desktop (C:\Program Files\Oracle\VirtualBox by default), check if VBoxManage.exe is there. If it is, start a command-line tool (e.g. PowerShell) in that directory and run:

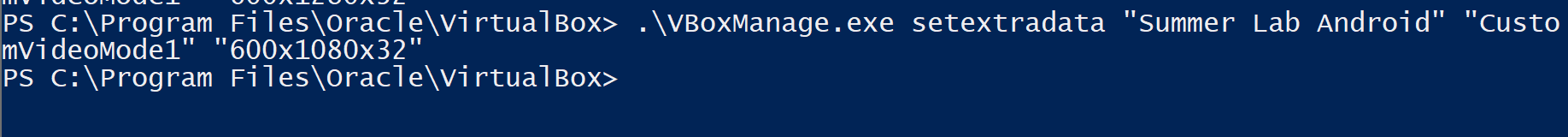

.\VBoxManage.exe setextradata "Summer Lab Android" "CustomVideoMode1" "600x1080x32"

Enter “debug mode” when starting the VM, press Enter and waitting for the output stops. Then run

mount -o remount,rw /mnt
cd /mnt/grub

Modify menu.lst by

vi menu.lst

Add vga=ask (press i to insert) after first “quiet root=/dev/ram0” and save it (first Esc then type :wq and hit Enter).

Reboot:

reboot -f

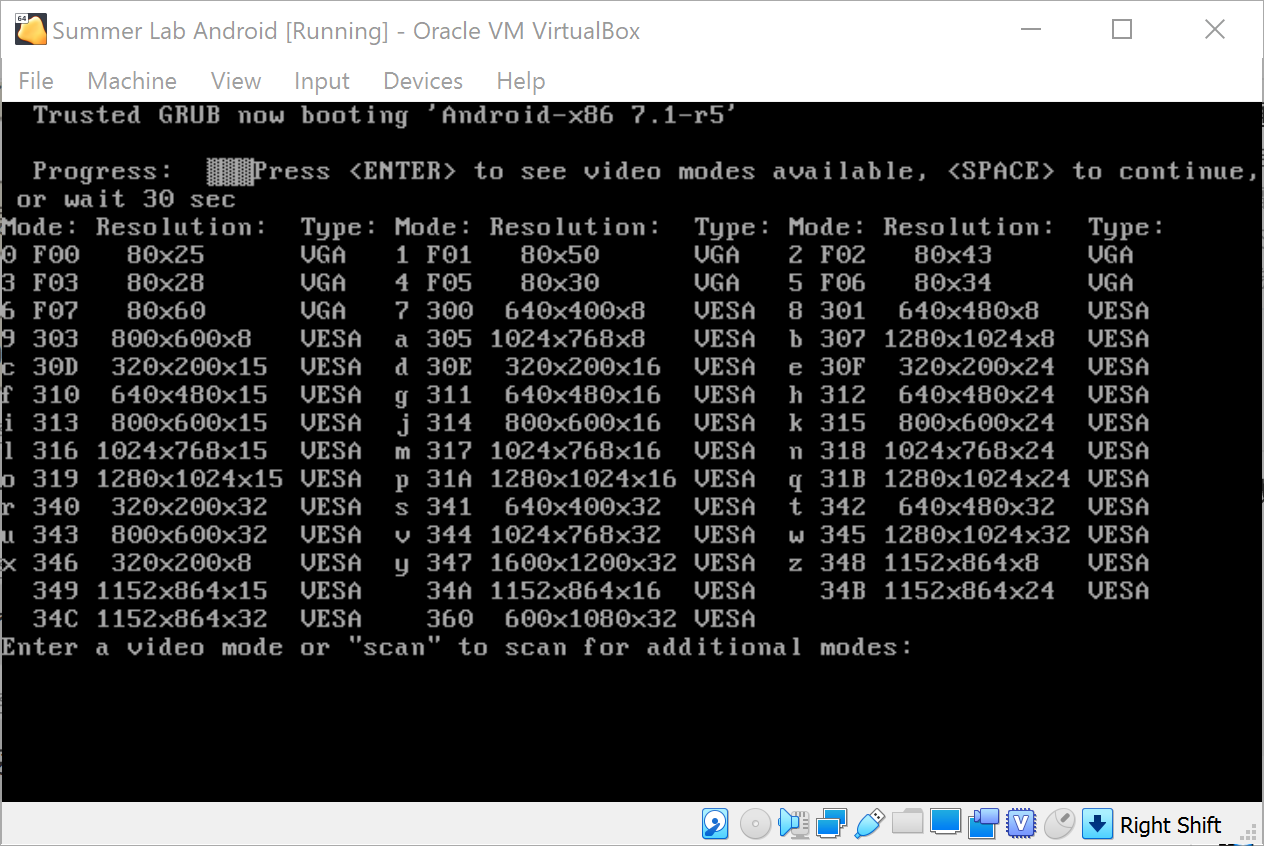

It will ask you about which video mode to select each time you start the Android VM.

Select the last one (360) and you will enter a portrait screen:

If the VirtualBox window doesn’t fit the screen you can modify the scale in View menu. Now you can also modify menu.lst with VGA=864 (360 is in hex-format, its dec value is 864), after that it will become 600*1080*32 by default in case you are tired of choosing the screen resolution every time.

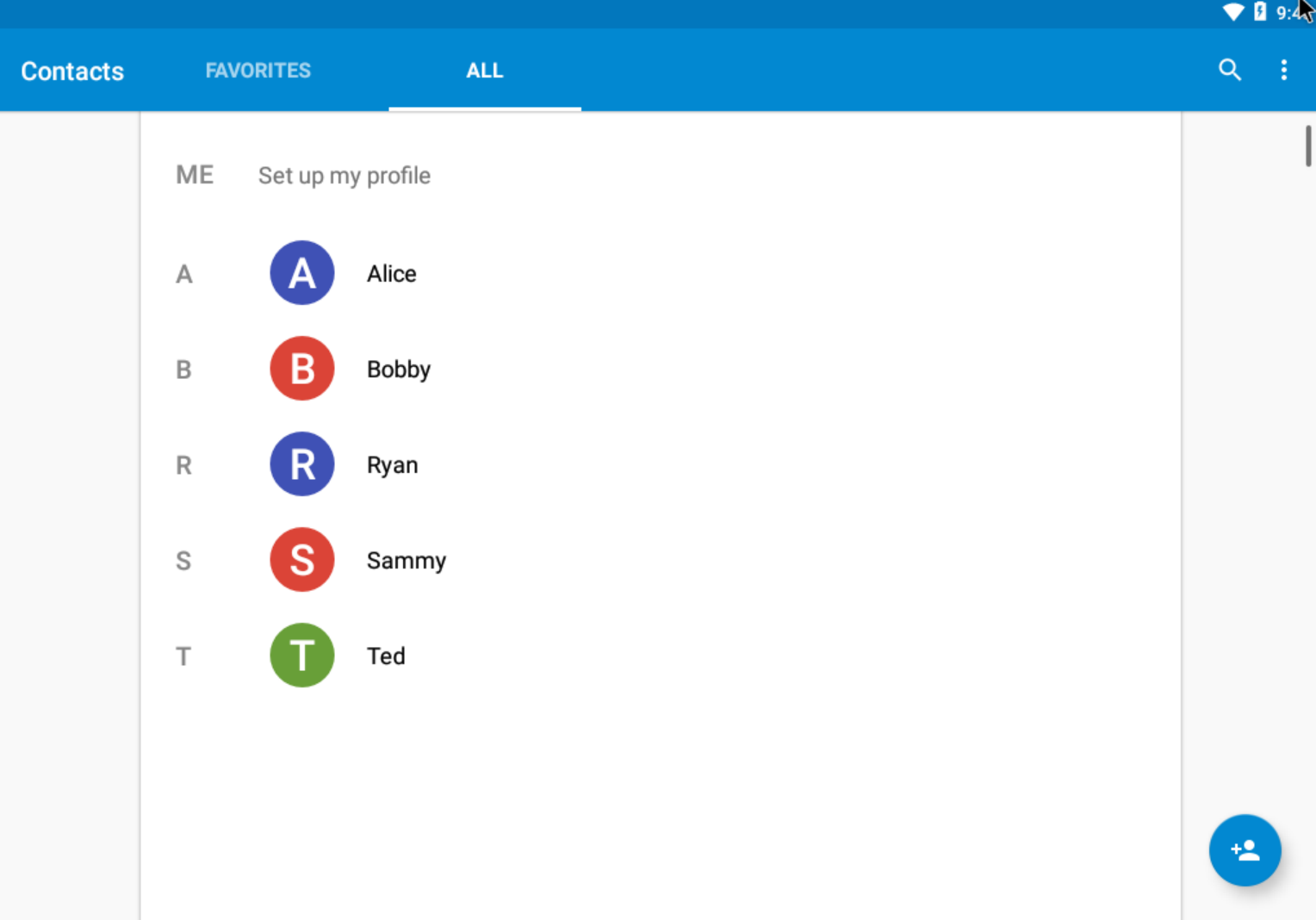

Add contacts

Follow the information used in Lab 8

Create a Minimal Ubuntun VM

Download ubuntu-20.04.2.0-desktop-amd64.iso image file from Ubuntu official website

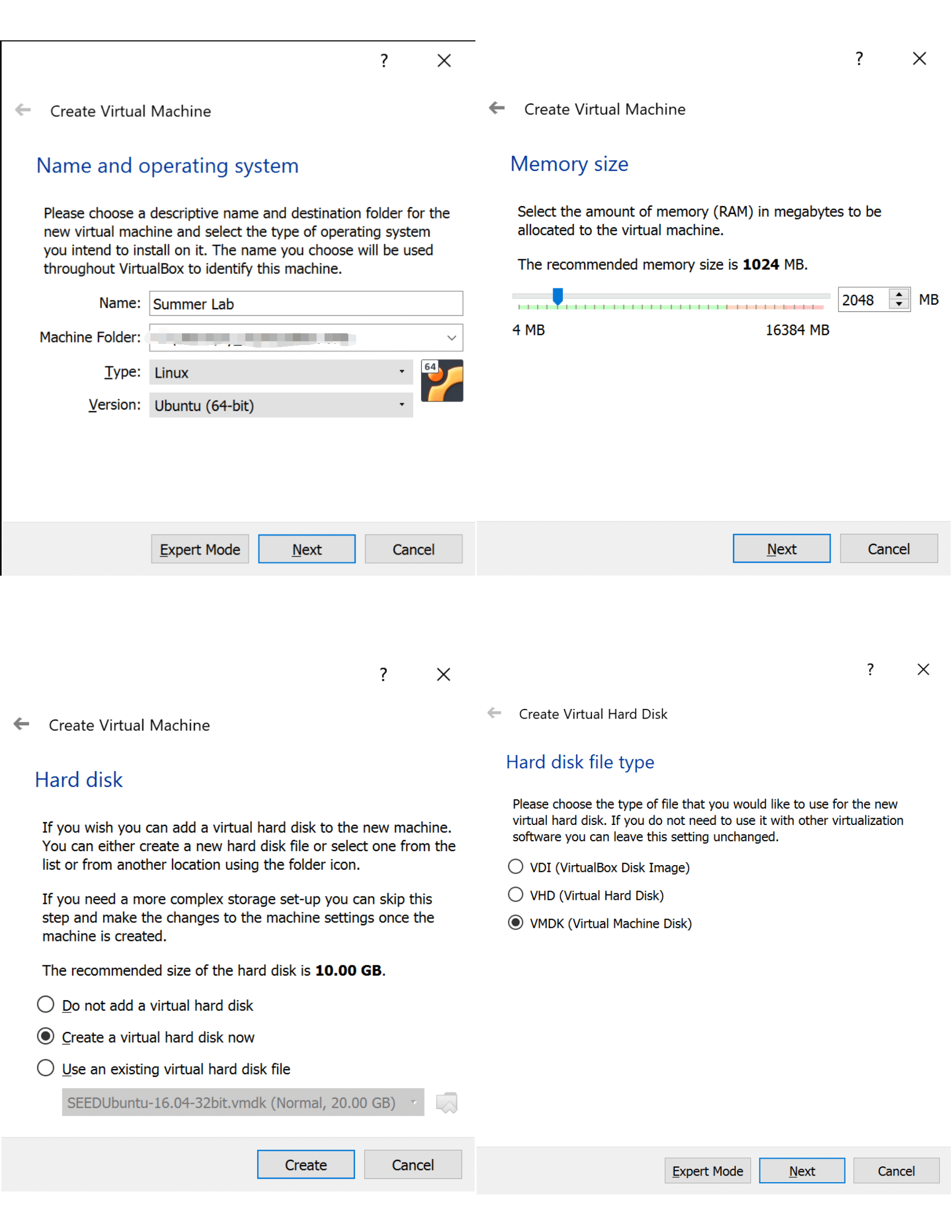

Start VirtualBox, click New button to create an empty Ubuntu VM, assign dynamically hard disk storage to it (I set it as 30 GB)

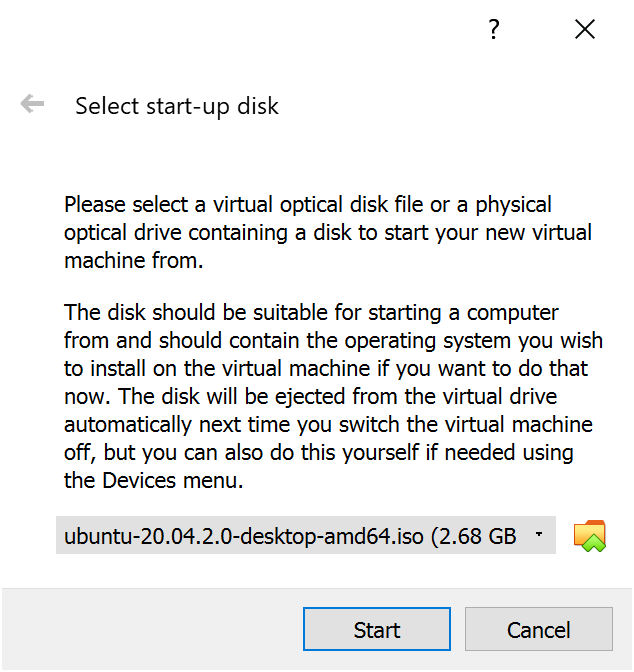

Run the newly created VM and select the image downloaded as the start-up disk.

Install Wireshark

Start a terminal and run

sudo dpkg-reconfigure wireshark-common

select yes and confirm, then run

sudo adduser $USER wireshark

Restart or log out. When you come back to this VM, you can launch Wireshark without root priviledge.

Install Docker

It can be used in Lab 6 and set containers up (following this manual) in case the VM environment doesn’t work for any lab.

sudo apt-get remove docker docker-engine docker.io containerd runc
sudo apt-get update
sudo apt-get install \
    apt-transport-https \
    ca-certificates \
    curl \
    gnupg \
    lsb-release
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg
echo \
  "deb [arch=amd64 signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://download.docker.com/linux/ubuntu \
  $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt-get update
sudo apt-get install docker-ce docker-ce-cli containerd.io
sudo usermod -aG docker $USER
newgrp docker

Install Network Tools

Install net-tools for debugging

sudo apt install net-tools

Change the resolution

To make the web app in Lab 6 fits the screen better, we must set a higher resolution as 1280*768.

Create Folders for Labs

Lab 4

mkdir ~/lab4
mkdir ~/lab4/volume

Lab 6

mkdir ~/lab6
mkdir ~/lab6/apks
cd ~/lab6/apks
wget https://github.com/ashishb/android-malware/raw/master/BreakBottleneck/SamplesOfHIP2014TalkBreakBottleneck/Claco.A/Claco.A.apk
wget https://github.com/ashishb/android-malware/raw/master/BreakBottleneck/SamplesOfHIP2014TalkBreakBottleneck/Dropdialer.A/Dropdialer.apk
wget https://github.com/ashishb/android-malware/raw/master/BreakBottleneck/SamplesOfHIP2014TalkBreakBottleneck/Obad.A/Obad.A.apk

Lab 7

mkdir ~/lab7
mkdir ~/lab7/volume

Clear bash history

cat /dev/null > ~/.bash_history && history -c && exit
